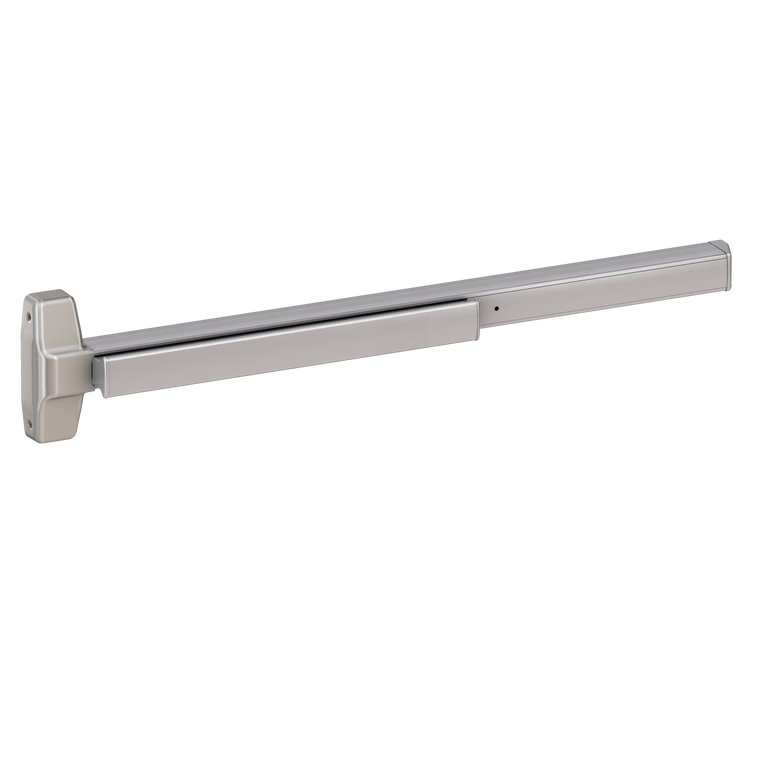

Von Duprin 7847 Wide Stile Concealed Vertical Rod Exit Device, Lever Blank Escutcheon, 48 Inch (4 Foot), Satin Stainless Steel, RHR - Right Hand Reverse

Von Duprin 7847 Wide Stile Concealed Vertical Rod Exit Device, Lever Blank Escutcheon, 48 Inch (4 Foot), Satin Stainless Steel, RHR - Right Hand Reverse

Von Duprin
SKU:
7847L-BE-06 4 630 RHR

Log in for pricing

(No reviews yet)
Width:
11.00 (in)
Height:
6.00 (in)
Depth:
52.00 (in)
Current Stock:
Description
Von Duprin 7847 Series Grade 1 Panic Wide Stile Concealed Vertical Rod Exit Device. Function: Lever Blank Escutcheon. Lever Blank Escutcheon function. Outside lever trim with 06 lever style and blank escutcheon plate (no cylinder hole). Hex key dogging standard. Device size: 48" (4 foot), suitable for 2'10" to 4' doors. Finish: Satin Stainless Steel (US32D / BHMA 630). Handing: Right Hand Reverse — door hinges on right when viewed from outside (pulls toward you on right side). Default door thickness: 1-3/4". Center line: 39-13/16". Certifications: ANSI/BHMA Grade 1, UL Listed. Dimensions: 11" W x 6" H x 52" L. Weight: 20 lbs. Includes 299 strike. Manufactured by Von Duprin (Allegion). Price Book 16, effective February 27, 2026. Concealed vertical rods provide top and bottom latching with a clean aesthetic; requires routed door preparation.
Additional Information
Product Type:
Exit Device
Series:
78 Series
Device Type:
Concealed Vertical Rod
Function:
Blank Escutcheon
Door Size:
48
Finish:
Satin Stainless US32D/630
Handing:
Right Hand Reverse
Fire Rating:
Panic
Less Bottom Rod:
Standard
