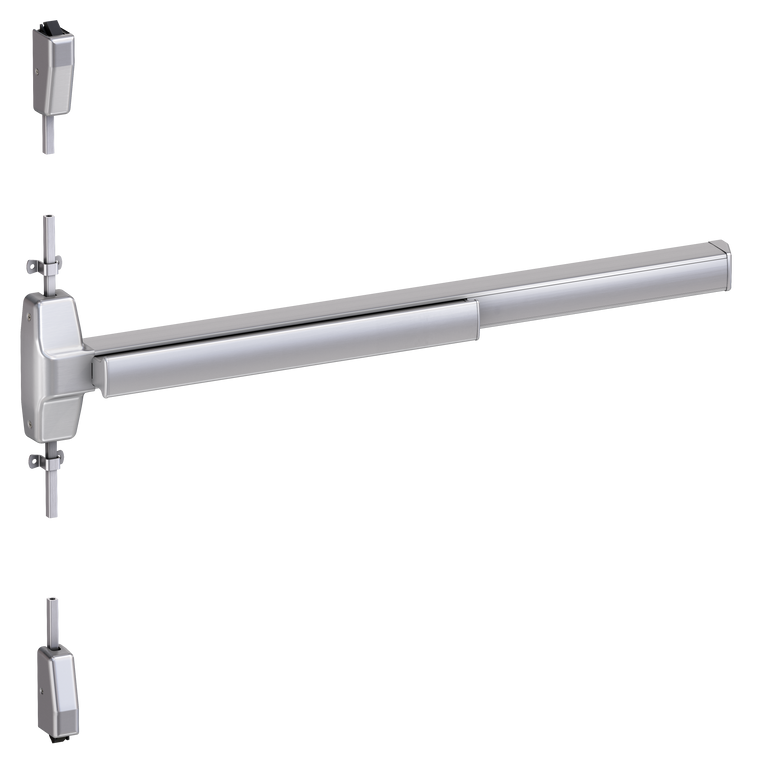

Von Duprin 7827 Wide Stile Surface Vertical Rod Exit Device, Exit Only, Fire Rated, 48 Inch (4 Foot), Satin Chrome, Non-Handed

Von Duprin 7827 Wide Stile Surface Vertical Rod Exit Device, Exit Only, Fire Rated, 48 Inch (4 Foot), Satin Chrome, Non-Handed

Von Duprin
SKU:
7827EO-F 4 626

Log in for pricing

(No reviews yet)
Width:
11.00 (in)
Height:
6.00 (in)
Depth:
52.00 (in)
Current Stock:
Description
Von Duprin 7827 Series Grade 1 Fire Rated Wide Stile Surface Vertical Rod Exit Device. Function: Exit Only. Exit Only function. No outside trim. Door is always free to exit. Hex key dogging standard. Device size: 48" (4 foot), suitable for 2'10" to 4' doors. Finish: Satin Chrome (US26D / BHMA 626). Handing: Non-Handed — no handing required for this function. Default door thickness: 1-3/4". Center line: 39-13/16". Certifications: ANSI/BHMA Grade 1, UL Listed, UL Fire Exit Hardware Listed. Dimensions: 11" W x 6" H x 52" L. Weight: 20 lbs. Includes 299 strike (299F for fire-rated applications). Manufactured by Von Duprin (Allegion). Price Book 16, effective February 27, 2026. Includes top and bottom surface-mounted vertical rods for top and bottom latching.
Additional Information
Product Type:
Exit Device
Series:
78 Series
Device Type:
Surface Vertical Rod
Function:
Exit Only
Fire Rating:
Fire Rated
Door Size:
48
Finish:
Satin Chrome US26D/626
Handing:
Non-handed
Less Bottom Rod:
Standard
