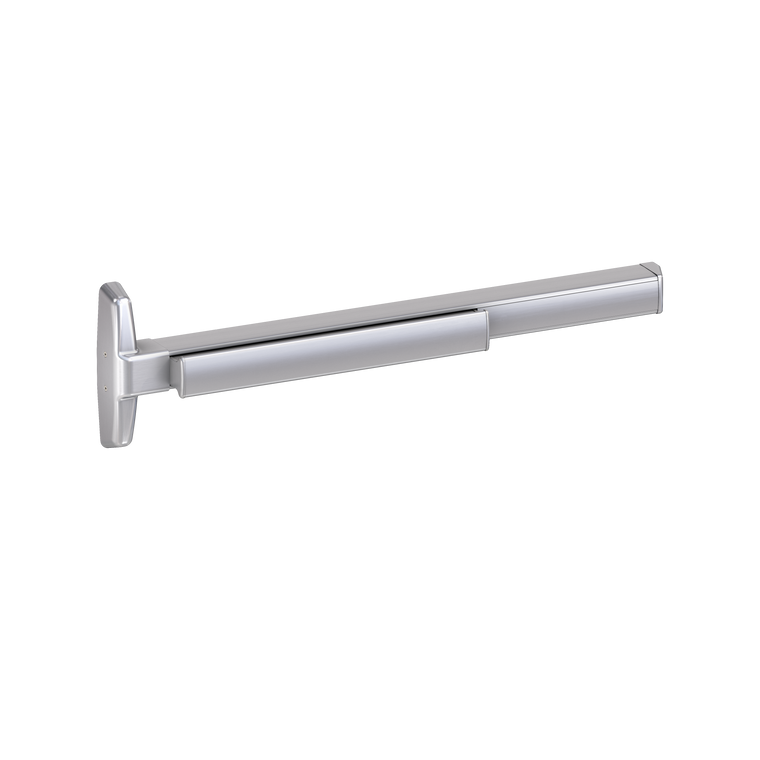

Von Duprin 7547 Narrow Stile Concealed Vertical Rod Exit Device, Lever Blank Escutcheon, Fire Rated, 36 Inch (3 Foot), Satin Chrome, RHR - Right Hand Reverse

Von Duprin 7547 Narrow Stile Concealed Vertical Rod Exit Device, Lever Blank Escutcheon, Fire Rated, 36 Inch (3 Foot), Satin Chrome, RHR - Right Hand Reverse

Von Duprin
SKU:
7547L-BE-06-F 3 626 RHR

Log in for pricing

(No reviews yet)
Width:
11.00 (in)
Height:
6.00 (in)
Depth:
40.00 (in)
Current Stock:
Description
Von Duprin 7547 Series Grade 1 Fire Rated Narrow Stile Concealed Vertical Rod Exit Device. Function: Lever Blank Escutcheon. Lever Blank Escutcheon function. Outside lever trim with 06 lever style and blank escutcheon plate (no cylinder hole). Hex key dogging standard. Device size: 36" (3 foot), suitable for 2'4" to 3' doors. Finish: Satin Chrome (US26D / BHMA 626). Handing: Right Hand Reverse — door hinges on right when viewed from outside (pulls toward you on right side). Default door thickness: 1-3/4". Center line: 39-13/16". Certifications: ANSI/BHMA Grade 1, UL Listed, UL Fire Exit Hardware Listed. Dimensions: 11" W x 6" H x 40" L. Weight: 20 lbs. Includes 299 strike (299F for fire-rated applications). Manufactured by Von Duprin (Allegion). Price Book 16, effective February 27, 2026. Concealed vertical rods provide top and bottom latching with a clean aesthetic; requires routed door preparation.
Additional Information
Product Type:
Exit Device
Series:
75 Series
Device Type:
Concealed Vertical Rod
Function:
Blank Escutcheon
Fire Rating:
Fire Rated
Door Size:
36
Finish:
Satin Chrome US26D/626
Handing:
Right Hand Reverse
Less Bottom Rod:
Standard
