Product Overview

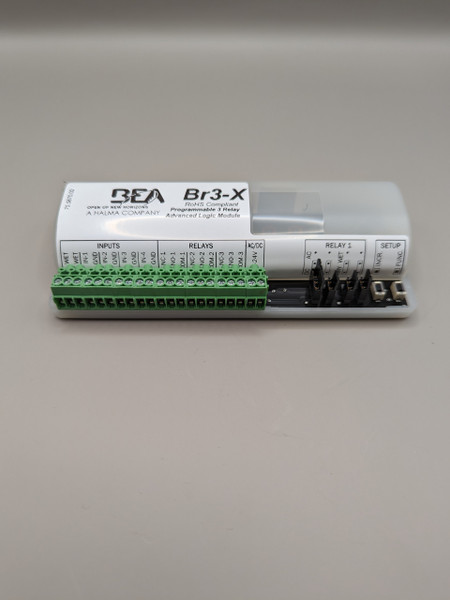

BEA’s BR3-X provides both simple and advanced logic controls.
Functions include: timer, ratchet / latching, inhibitor, 2 relay sequencer + inhibitor, 2 relay sequencer + door position
deactivation timer, 3 relay sequencer + “1-shot”, 3 relay sequencer with “independent relay”, interlock timer, interlock ratchet / latching, 2 way 2 relay sequence, normally locked restroom, normally unlocked restroom, 3 relay sequencer + “day / night mode”.
Common uses for the BR3-X include automatic pedestrian doors, access control, industrial automation and single-occupancy restrooms.
|
Supply Voltage |
12 – 24 VAC / VDC ±10% |
|---|---|
|
Power Consumption |
30 – 130 mA; DRY Output |
|
Temperature Range* |
-15 – 150 °F |
|
Dimensions |
5 1⁄5” (W) × 1” (H) × 2 1⁄5” (D) |
|
Relay Hold Time |
Up to 60 seconds per relay |
|
Delay Between Relays |
Up to 60 seconds per relay with ¼, ½ and ¾ second options |
|
Housing Material |
ABS Plastic |
|
Input Specifications |
|
|
Contact Rating |
|
